RC ROVER® REV9-16
Unmanned Ground Vehicle

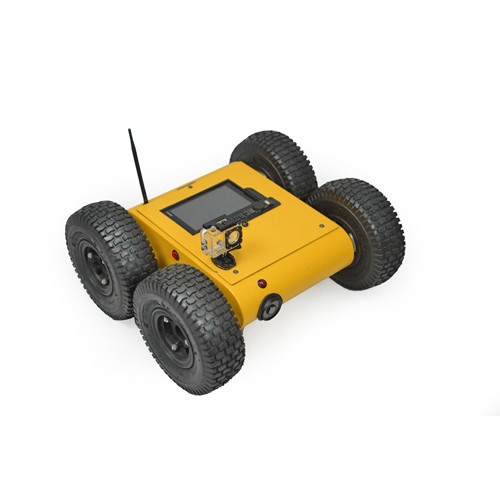

Introduced in 2002, the REV9-16 Unmanned Ground Vehicle is the shorter, lighter, more compact 16" chassis in the REV9 series of unmanned vehicles, offering maximum ground clearance because of its 10" tires, capable of operating even when flipped upside down. REV9-16 unmanned vehicles continue to evolve with the advent of technology, maintaining a clear advantage when it comes to man portable form, function, and value. As a proven platform deployed world-wide for over a decade now, the REV9 series of unmanned vehicles have been delivering unmatched performance and value to professionals around the world.
REV9 is modular, customizable from the ground up, and easily expandable, available as Almost Ready To Run (ARTR), Ready To Run (RTR) , Ready For Operation (RFO) with additional options and upgrades sold separately.
- ARTR kit includes complete chassis
- RTR Kit includes ARTR plus operator radio ideal for full remote navigation upon arrival.
- RFO kit includes RTR plus ground station and transportation case, ready for turn-key operation.
Each REV9 chassis is made of laser cut, pressed, deep welded, and painted (or optionally, anodized) aerospace grade material, with a footprint small and light enough to make it an ideal man-portable UGV, while large enough to allow for optimum stability, terrain traction, and payload capacity. REV9-16 comes with top surface access panels which maybe sealed optionally for water resistance and temporary submergence in shallow pools of water. Payload may be installed on top of the chassis (this placement however prevents the UGV to operate upside down/flipped) or internally.
RC Rover® REV9 Unmanned Systems are Proudly Designed, Made, and Assembled in U.S.A.
Selecting which model to chose depends on intended use, type of environment, end-user requirements, and project limitations.
• The REV9-18 has a longer 18" chassis, rendering more surface-mount space for payload. It handles steep inclinations on slick surfaces very well, and climbs shorter stairs but more smoothly with outstanding traction and accuracy.
• The REV9-16 has a shorter 16" chassis and higher ground and payload clearance (about 4" depending on orientation) therefore allowing it to operate upside down / down side up (subject to proper payload placement).
• Both vehicles come with top surface access panels which maybe permanently sealed as an option to allow drive-through water (Note: External payload also needs customization to allow submergence). REV9 payload may be installed on top or side panels or internally.
If you are not sure which system to choose, simply contact us - we are are here to help.
Durability
Resists momentary shocks, impacts, snow and rain, external voltage spikes, solvents, fire, hazmat, and harsh environments
Intelligence!
All REV9 RFO Systems ship with switchable RC / PC controllers. This feature accommodates native system expansion and integration for controlled RC or PC use as well as full autonomous or semi-autonomous waypoint based navigation.
Precision and Speed
REV9 can "turn on a dime" while moving at speeds of few inches per minute or up to 7 miles per hour. Speeds fo 30+MPH maybe achieved by utilizing upgrade component and optional equipment sold separately.
Footprint
At only 18" x 12" x 4" (REV9-18) and 16" x 12" x 4" (REV9-16).
Strength & Durability
REV9 unmanned vehicles are built to resist momentary shocks, impacts, snow / rain, external voltage spikes, solvents, fire, hazmat, and harsh environments, with enough traction to momentarily pull a rolling chassis ten times its weight.
Payload capacity
Lab tested at peak 200 LBS of payload.
Suggested payload capacity not to exceed 30 LBS.
Two Step Maintenance
Step 1: Clean machine after each use.
Step 2: Keep batteries charged at all time. That's it!
For REV9 systems with marine-sealed chassis, , simply hose down the UGV after each use and wipe dry. For non-sealed REV9 cleaning, use a damp towel to clean, and a dry towel to dry the chassis and payload.
Repair and Replacement
All REV9 Parts are replaceable. Repairs requiring simple component swap may be filed-performed by operator. Wheels, tires, and adapter hubs may be repaired/replaced by operator or by the local lawn and garden shop. Electronics and drive system components must be repaired or replaced by an authorized REV9 technician/facility.
REV9 Common Applications
Security and surveillance
Tactical and law enforcement
Search and rescue
Site survey and Inspection
Photography and videography
STEM/EDU project platform
Factory/task automation
Structural engineering and mapping
Transport and delivery
Hazmat Scout vehicle
